Conditional Postural Synergies I: Representations

In this series of posts, I will discuss the key projects I developed for my Ph.D. thesis. The main theme of my research is the application of postural synergy models to facilitate the control of humanoid robotic hands. In this initial post, I will focus on the representation and generation of grasp postures and demonstrate some example applications. But, let me first explain what postural synergies are and their significance in this context.

Background

The human hand is the primary mechanism we use to interact with the world, enabling essential functions like tool usage and communication, forming the foundation of our civilization (Kivell et al. 2016). Naturally, the robotics community has tried to replicate these capabilities by designing anthropomorphic robotic hands. However, the dexterity and versatility of these hands come at the price of increased complexity in control (Venkataraman et al. 2016), owing to their high number of degrees of freedom (DoFs) - the human hand, for instance, has 21 DoFs. To address the challenge of controlling humanoid hands effectively, roboticists have sought to imitate the mechanisms employed by the brain to tame such a high number of DoFs. Research in primate neurophysiology has suggested that the brain utilizes synergies at various levels - neural, muscular, and kinematic - to facilitate hand control (Santello et al. 2016). The core concept behind synergistic control is that multiple DoFs are controlled by a small number of control variables, which implies a certain degree of interdependence among the DoFs.

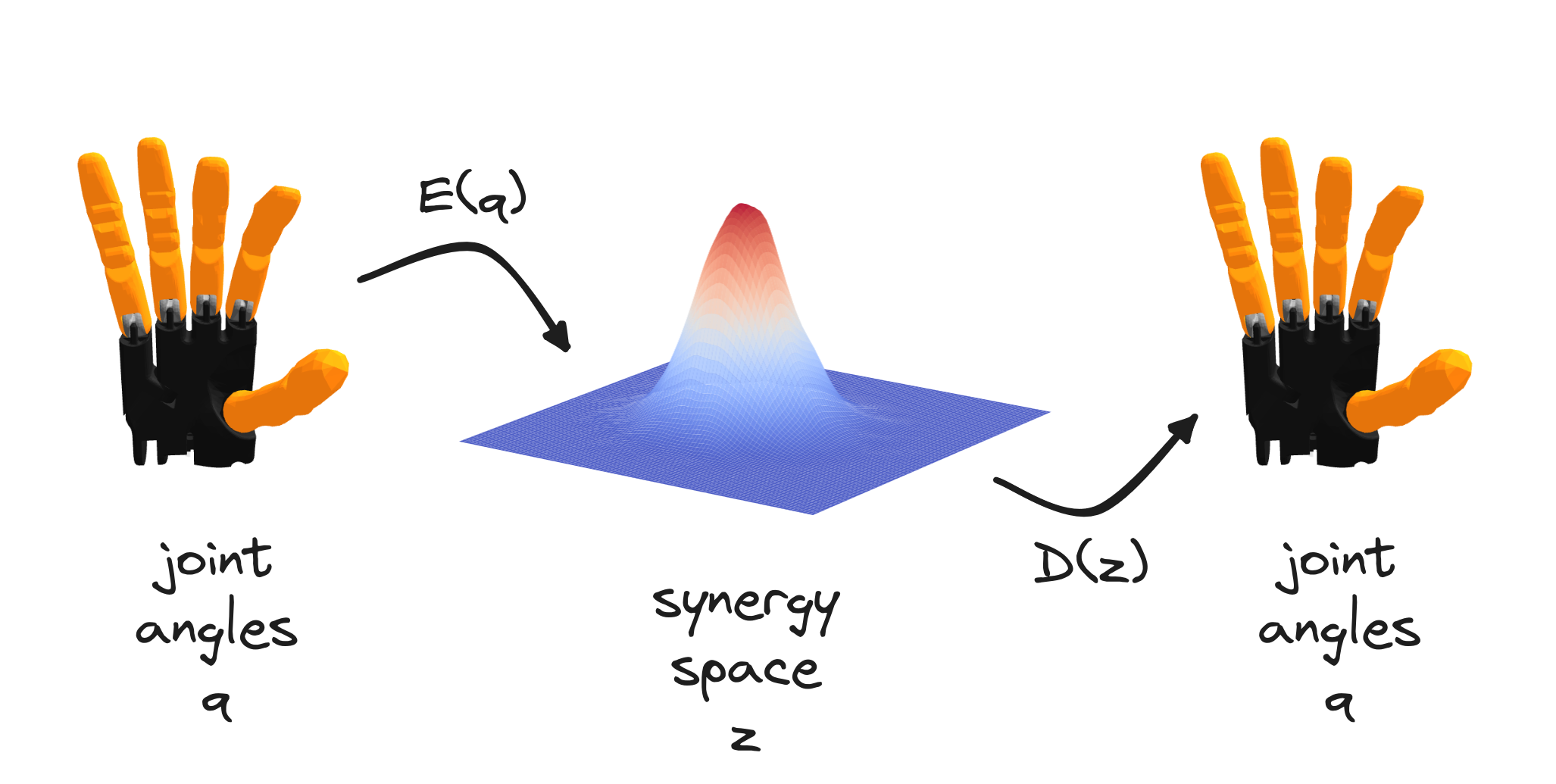

The robotics community has developed two main approaches to imitate this organizational structure (Salvietti 2016): (1) a hardware approach, where the synergies are implemented directly on the robot's physical hardware, for example by coupling tendons in the robot’s fingers, and (2) a software approach in which the synergistic framework is implemented through a computational method. The software approach is more modular, non-invasive, and allows the robot to maintain a large number of degrees of freedom. It usually employs a manifold learning method to learn a low-dimensional representation of the hand configuration space, which is commonly referred to as the synergy space. In practice, the objective is to find: (1) a function $E: \mathcal{Q} \rightarrow \mathcal{Z}$ that encodes a hand posture $q\in \mathcal{R}^{d_q}$, represented for example by the finger joint angles, into a low-dimensional point $z\in \mathcal{R}^{d_z}$ where $d_z \ll d_x$, and (2) a function $D:\mathcal{Z} \rightarrow \mathcal{Q}$ that decodes the low-dimensional point $z$ into a hand posture $q$.

Models and Evaluation

Several methods have been proposed for extracting the synergy space of robotics hands. In one of the first works (Ciocarlie et al. 2007), the method utilized was the Principal Component Analysis (PCA), which is a linear and deterministic method. PCA represents the map $z=E(q)$ through a matrix operation: $E(q) = qW$ where $W \in \mathbb{R}^{d_q \times d_z}$. The optimal solution can be analytically derived, with the optimal value for W corresponding to the principal components of the data. This solution also minimizes the total squared reconstruction error of the data. In another work (Starke et al. 2018), an Auto-Encoder (AE) model was employed, which is a deterministic but non-linear method. In this case, the maps $E(q)$ and $D(q)$ are modeled using neural network architectures. The network parameters are optimized by minimizing the mean squared error between the input and the reconstructed output. Finally, the Gaussian Process Latent Variable Model (GP-LVM), which is a probabilistic non-linear method has been used in multiple cases (Romero et al. 2013, Xu et al. 2016). Here, the mapping E is modeled by a Gaussian Process, making the encoding procedure a sampling operation from a Gaussian distribution. The model is optimized by maximizing the likelihood of the data.

In previous studies proposing new synergy extraction models, the evaluation of the model's performance commonly relies on the reconstruction (or reproduction) error. This metric measures the distance between the original hand posture and its reconstructed counterpart, which is assumed to reflect the ability of the model to represent the observed hand postures. However, in the case of non-linear models, for a posture q encoded in a latent point $z = E(q)$, there exists a neighboring latent point $z^*$, such that the decoded posture $\tilde{q}^* = D(z^*)$ from this point is closer to the original posture $q$ compared to the posture $\tilde{q} = D(z)$ decoded from the original latent point z. More specifically: $$|| \tilde{q}^* − q||_2 < ||\tilde{q} − q||_2$$ This suggests that a model may have a large reconstruction error for a particular hand posture while still being able to represent it in another region of the latent space. This discrepancy is observed in all non-linear models, while PCA does not exhibit this property. The likely reason behind this is that in PCA we can find a globally optimal solution, whereas in the non-linear models, we find only locally optimal solutions since we use gradient-based methods. Furthermore, we generally develop a synergy model to use it in downstream tasks. However, this metric fails to provide any relevant information regarding the synergy model’s performance in the downstream tasks. We advocate that the evaluation metric should be closely aligned with the specific task at hand.

Considering this, we proposed (Dimou et al. 2021, Dimou et al. 2023) employing the smoothness of the learned latent space as an alternative evaluation metric for comparing synergy models. Smoothness quantifies the degree of variation in hand postures decoded from adjacent points in the latent space. For instance, if we want to generate a manipulation trajectory, e.g. using a sampling-based motion planner, directly in the latent space to solve an in-hand manipulation task, we would want neighboring points to produce similar grasp postures without exhibiting abrupt changes in joint angles between them.

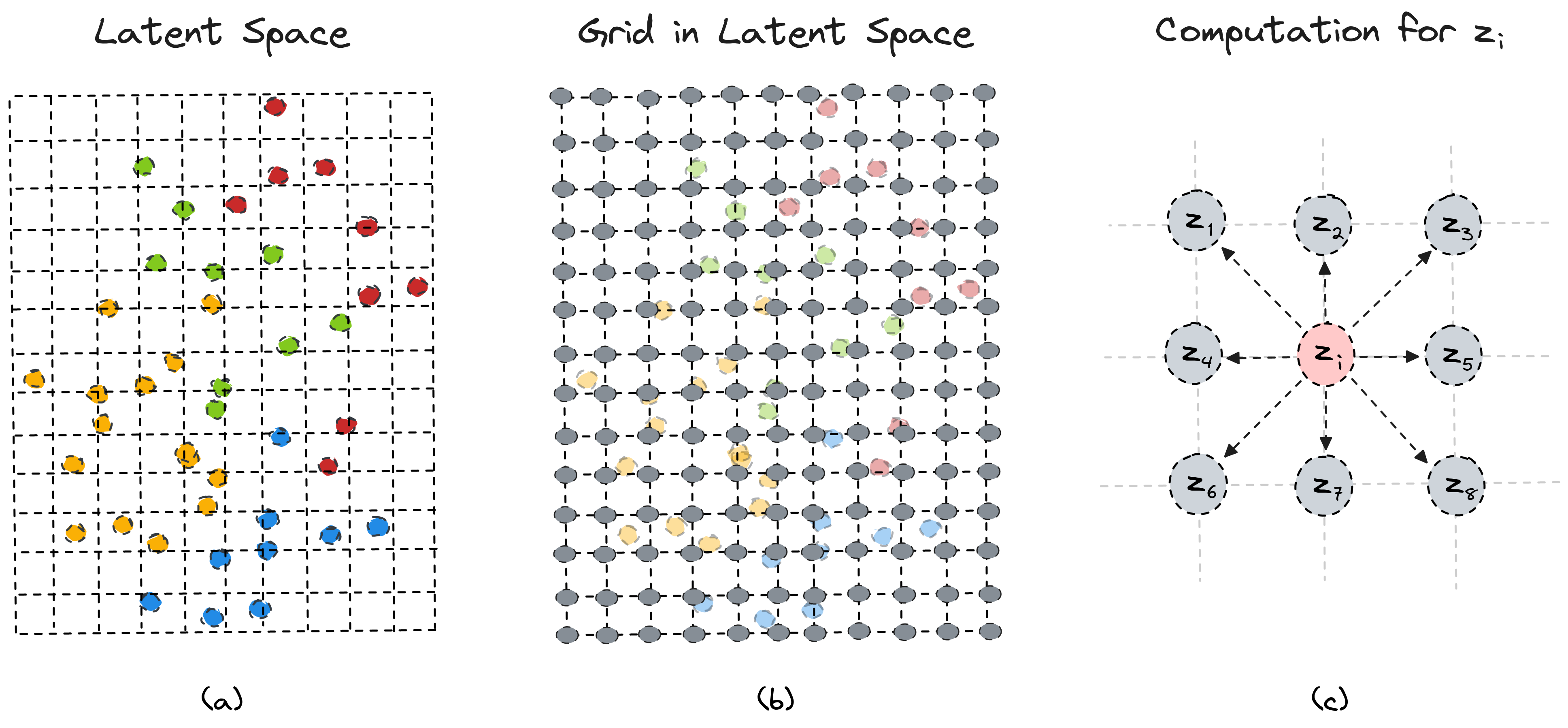

To approximate the smoothness of a latent space we compute the average smoothness in the neighborhood of each latent point. We begin by encoding all grasp postures that are contained in our dataset into the latent space, we then compute the bounding box of these latent points and define a Cartesian grid inside it. For each vertex $z_i$ on the grid, we compute the difference of the joint angles between the grasp posture $q_i = D(z_i)$, which is decoded from $z_i$ , and the grasp postures $q_j = D(z_j)$, decoded from the vertices $z_j$ which are the adjacent vertices of $z_i$. The smoothness of the latent point $z_i$ is then defined as: $$ \mathbf{s}_i = \frac{\sum_{j=1}^{8}d_{ij}}{8} \text{, where } d_{ij} = || D(z_i) - D(z_j) ||_2$$

Finally, we define the smoothness of the entire latent space as the average smoothness of the latent points on the grid: $$ \mathbf{S} = \frac{\sum_{i=1}^{N} \mathbf{s}_{i}}{N} $$ where N is the number of vertices on the grid and measures the resolution of the grid and can be arbitrarily defined. Moreover, to quantify how smoothness changes in each point’s neighborhood we compute the variance $v_i = Var (d_{ij})$ and the entire variance of the latent space $V = Var (s_i)$. We consider the smoothness $s_i$ as a discretized gradient of the latent point $z_i$, indicating the average difference in joint angles when transitioning to the surrounding points on the grid.

Conditional Postural Synergies

Based on the previous discussion, we propose to utilize a different type of model for synergy extraction, namely the Variational Auto-Encoder (VAE). VAEs are generative models and are regularly used as a representation learning module in various applications including robotics. Notably, VAEs have demonstrated the ability to learn smoother and more meaningful latent spaces compared to AEs (Chen et al. 2021). They are composed of an encoder and a decoder network which model model probability distributions. The encoder is an inference model that takes as input a data point $q$ and infers a latent point $z$. In practice, the encoder is parameterized by a neural network and produces the mean $\mu \in \mathbb {R}^{d_z}$ and variance $\sigma \in \mathbb{R}^{d_z}$ of a Gaussian distribution. The latent point $z$ is then sampled from this Gaussian distribution, in contrast to the AE model, where the latent point is the output of the encoder network. The decoder model, which is also parameterized by a neural network, uses a latent point $z$ to generate a point in the original data space $\mathcal{Q}$. Both networks are trained jointly using variational inference, maximize the evidence lower bound (ELBO): $$\mathcal{L}_{\boldsymbol{\theta}, \boldsymbol{\phi}}(\mathbf{x}) = \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z} | \mathbf{x})} \left[\log p_{\boldsymbol{\theta}}(\mathbf{x} | \mathbf{z})\right] - D_{KL} \left( q_{\boldsymbol{\phi}}(\mathbf{z} | \mathbf{x}) \| p(\mathbf{z} )\right)$$ The first term corresponds to the mean squared error between the the input and reconstruction, while the second term plays a regularization role in the generative model. The optimization of the network's parameters is performed with gradient-based algorithms.

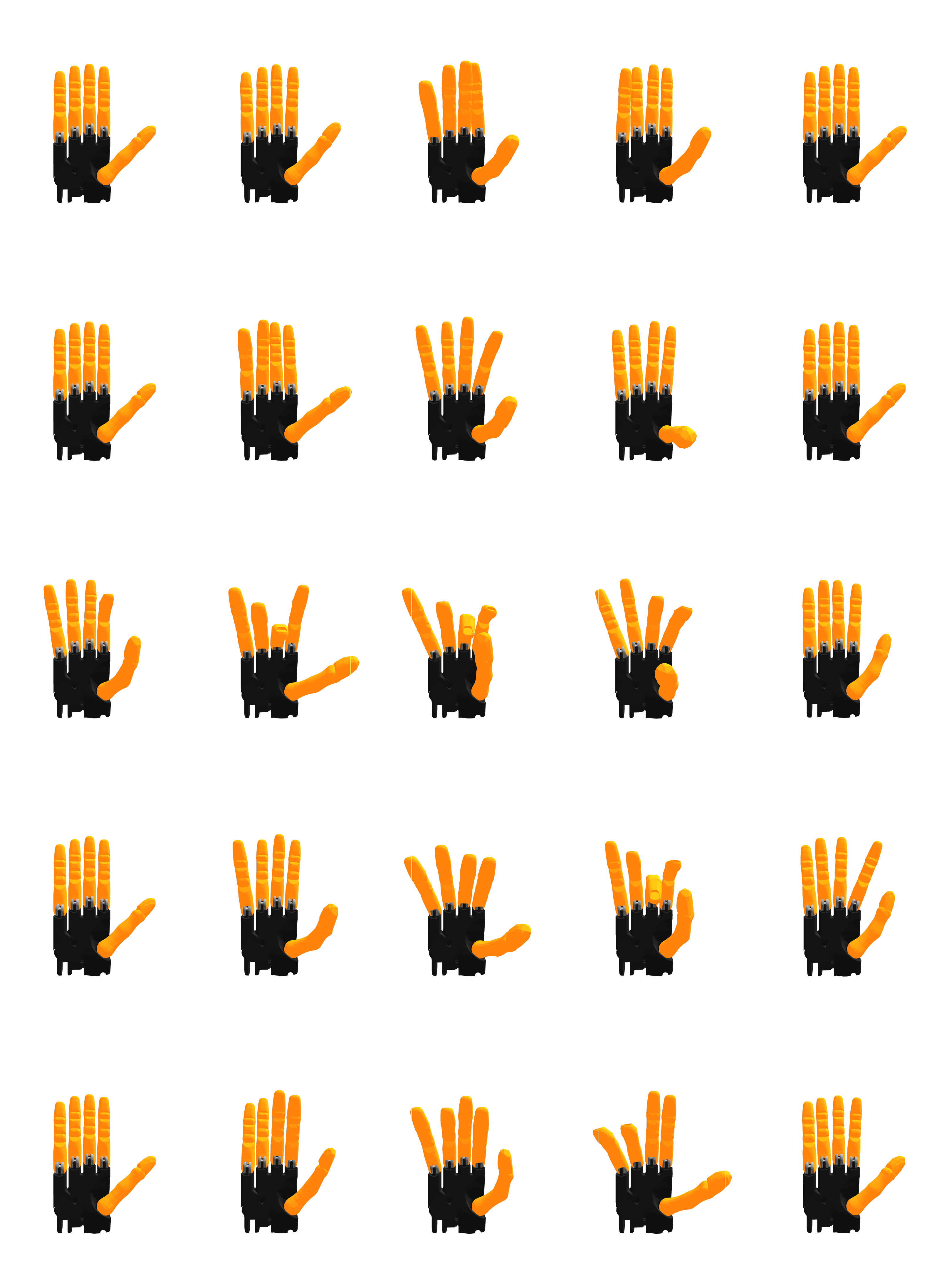

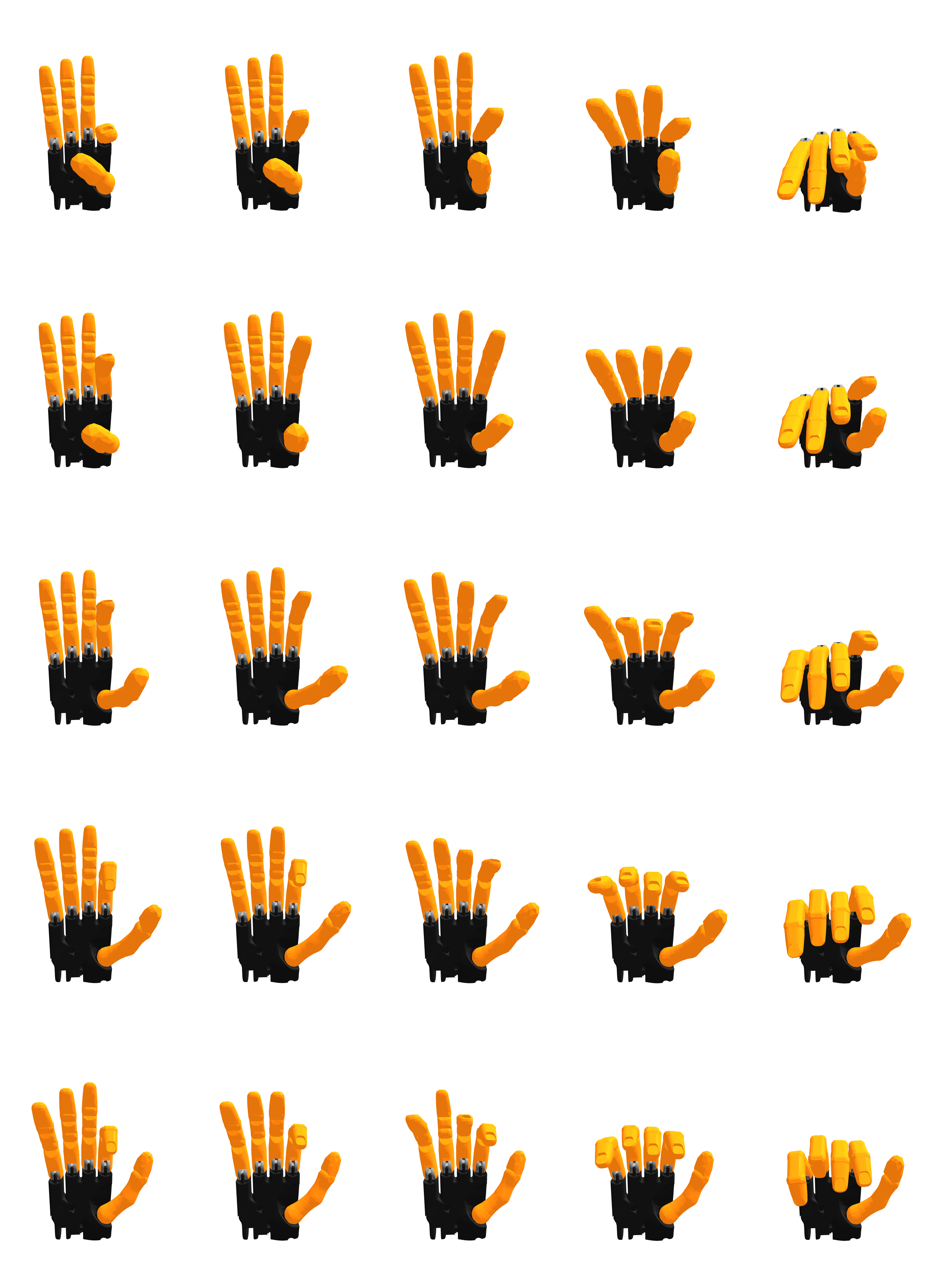

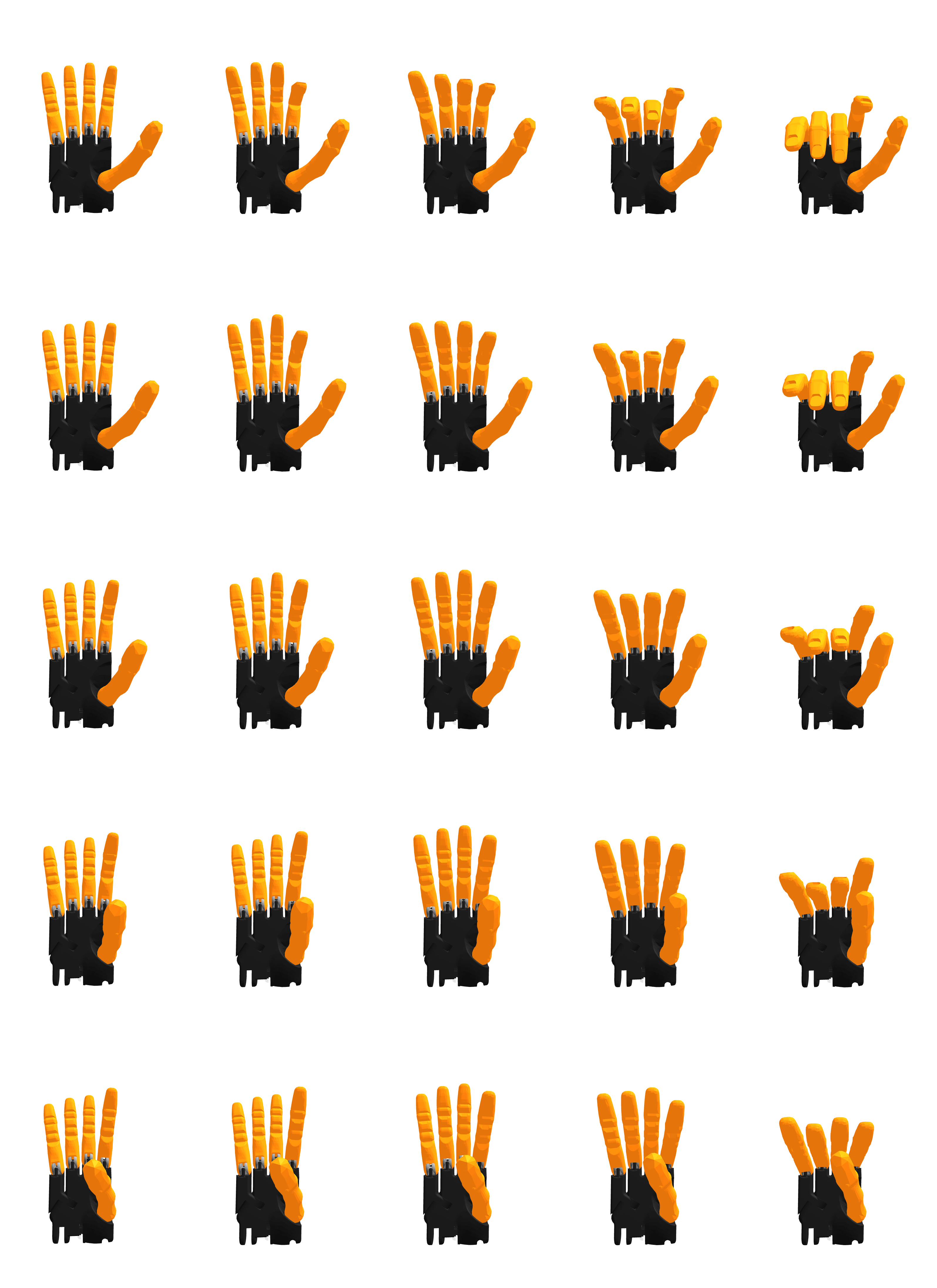

To gain an intuitive understanding of the impact of latent space smoothness, we can decode the grasp postures from the grid vertices and visually examine them. Displayed below are hand postures of the Shadow hand decoded from a $5\times5$ grid in the latent space of a PCA, VAE, and GP-LVM model. The visualization indicates that the VAE model has learned a smooth latent space, as neighboring hand postures show consistent variations. In contrast, the neighboring postures decoded from the GP-LVM model exhibit irregular changes, indicating less smoothness in the latent space.

Additionally, one of the advantages of using VAEs to model the synergy space is that it can be easily extended to generate data explicitly conditioned on discrete and continuous variables. This means that we can model high-level properties, such as the grip type, and quantities, such as the grasp size, using one model. This way we can explicitly generate grasps that have specific desired properties. The high-level information can be the type of grasp that is performed, e.g. from a grasp category, the size of the grasp, or information about the object that is grasped. This can be useful in several applications where a high-level policy (or planner) generates the high-level information and dictates the goals to a low-level controller.

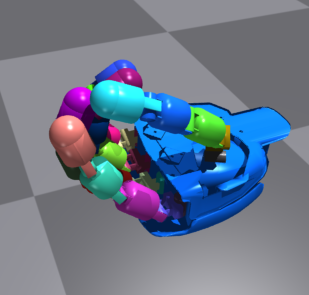

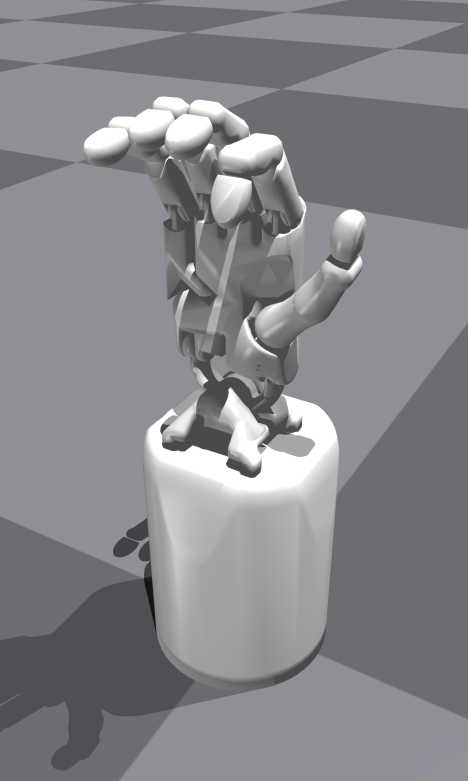

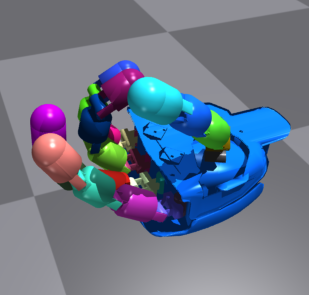

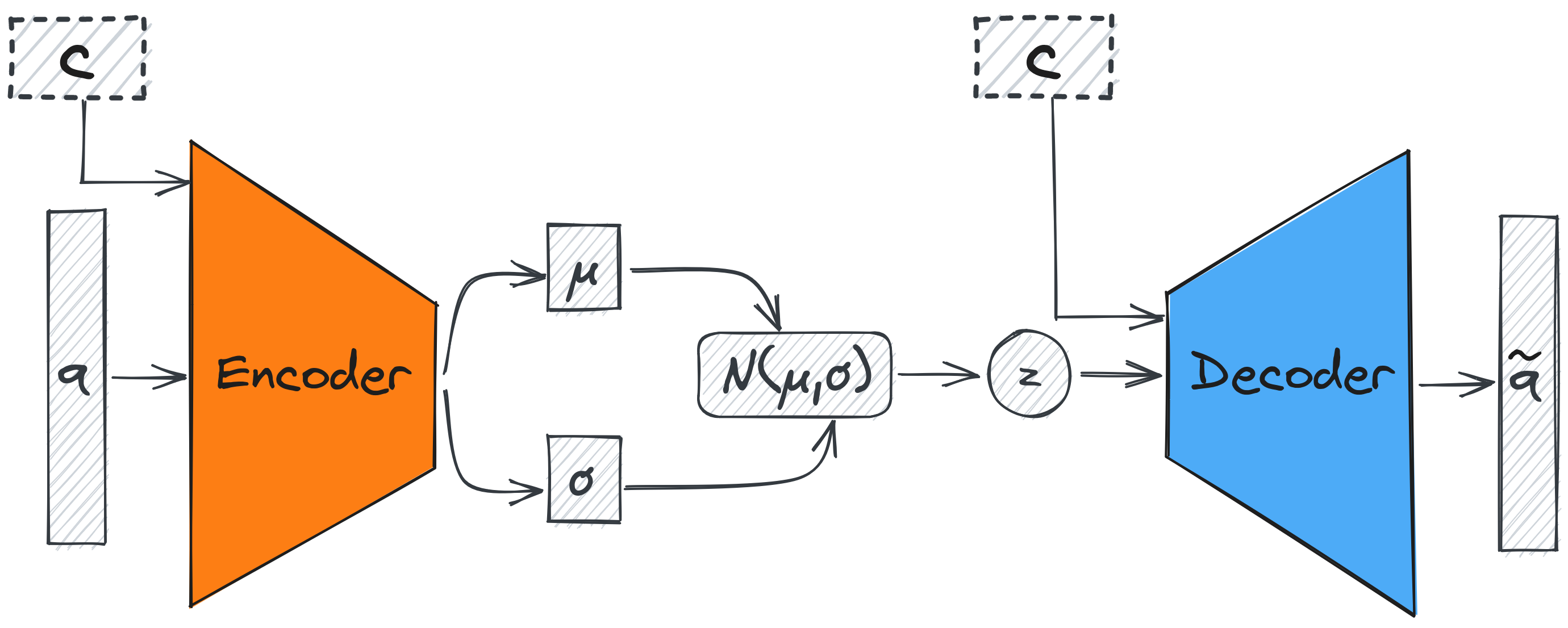

The Conditional Variational Auto-Encoder (CVAE) conditions the encoder and the decoder networks on an auxiliary variable $c$. In the case of training the CVAE to generate grasp postures these conditional variables can represent the desired properties of the grasp. For example, in the Figure below you can see six grasp postures decoded from a CVAE model using the Shadow hand, that each belongs to a different precision grasp type.

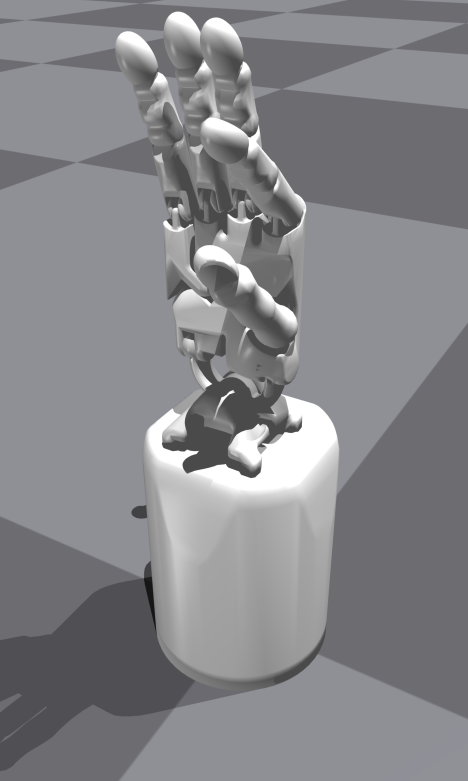

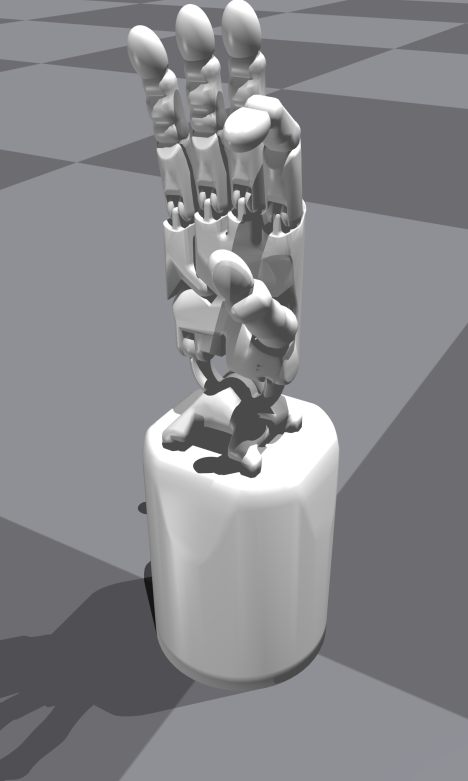

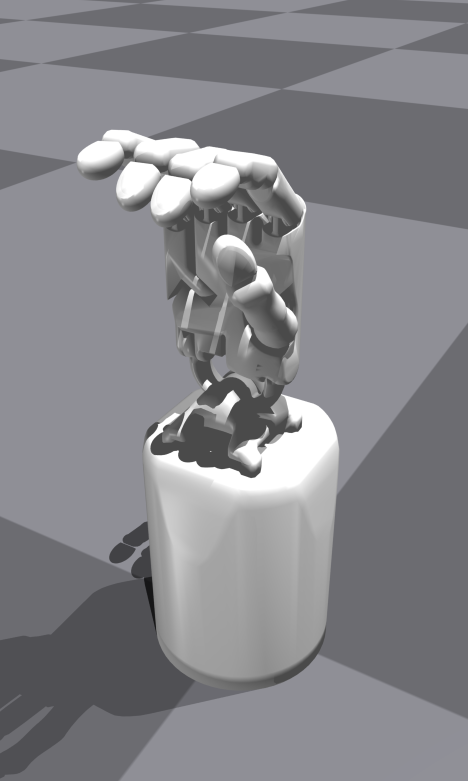

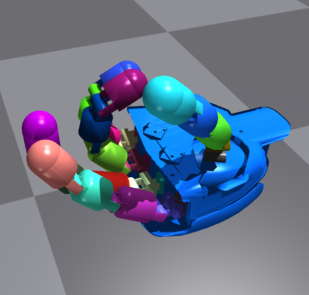

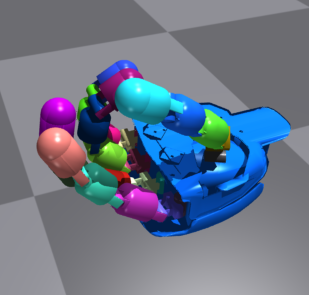

Another grasp property that we might want to regulate is the grasp size. Below are the grasp postures decoded from the model for a tripod grasp with increasing sizes. In the context of precision grasps, we define the grasp size as the distance between the thumb and index fingertips.

Case Study: In-hand Regrasping

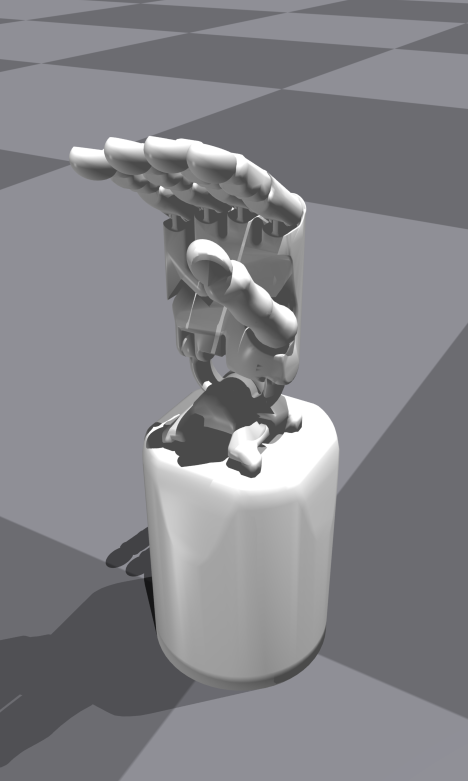

In order to assess the proposed model and evaluation metric in the context of a manipulation task utilizing synergies, we selected an in-hand regrasping task, in which we will be generating the regrasp trajectories directly in the latent space of the model. The objective of the regrasping task is to transition from an initial grasp posture, belonging to one specific grasp type, to a target grasp posture, belonging to another grasp type, while maintaining the stability of the object in the hand.

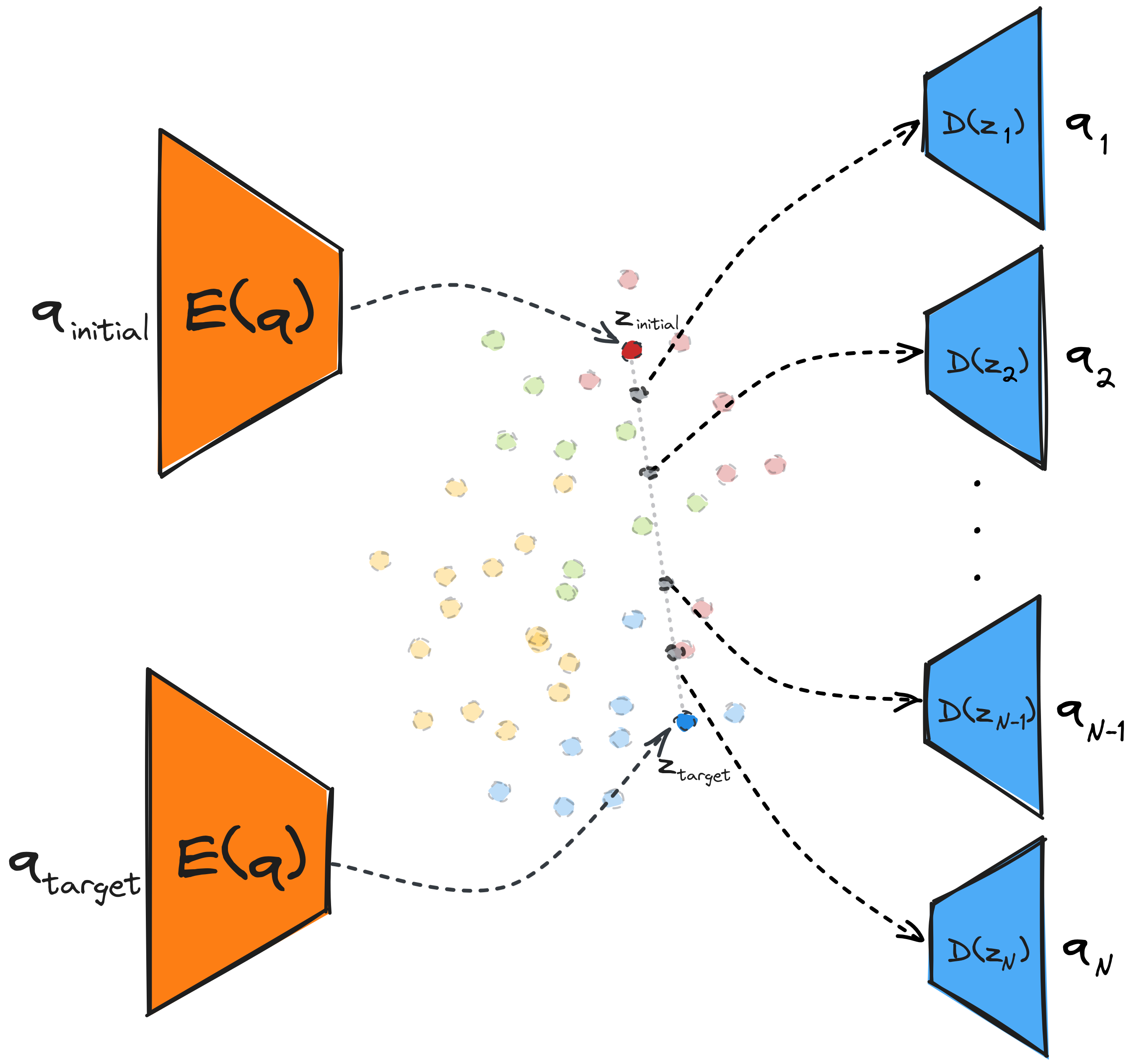

We follow a straightforward approach for generating the regrasp trajectories in the latent space of the models. We encode the initial grasp posture $q_{initial}$ and the target grasp posture $q_{target}$ into the latent space, resulting in the respective latent points $z_ {initial}$ and $z_{target}$. Subsequently, we perform linear interpolation between these two points in Euclidean space, sampling $N$ points to represent the trajectory steps, where $N$ corresponds to the desired number of steps in the trajectory. Finally, we decode the sampled latent points into grasp postures $q_1, q_2,.. ,q_N$, obtaining a trajectory in the configuration space. In essence, instead of employing a complex planning algorithm to find a sequence of states that can perform the required regrasp we rely on the structure of the latent space of the model. If the latent space is smooth enough we can generate successful trajectories by a simple procedure such as linear interpolation.

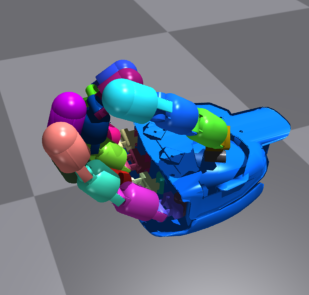

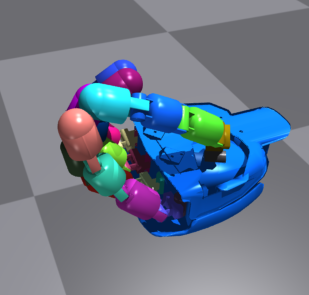

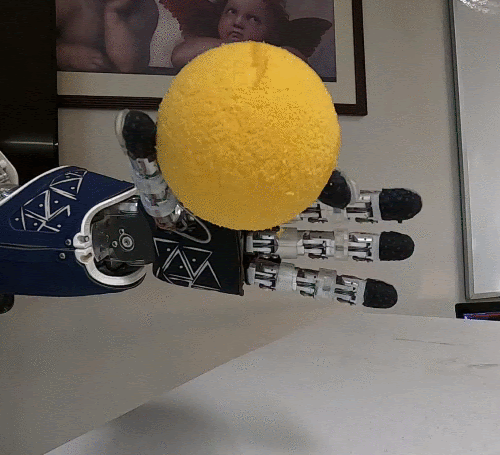

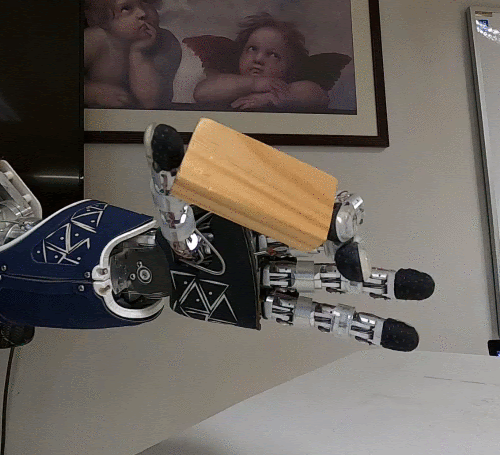

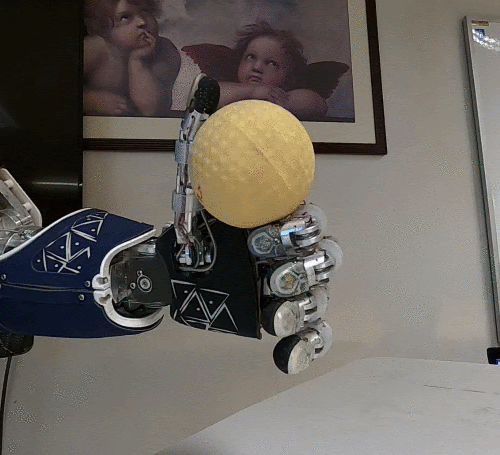

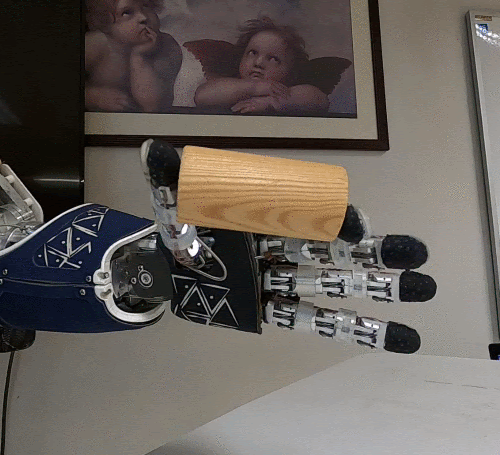

In our work, we demonstrate that the models with lower reconstruction errors do not perform well in the regrasping task. Conversely, models with smoother latent spaces manage to perform more successful regrsaps. This indicates that the smoothness of the latent space is a more predictive metric for the performance of the model in the regrasping task, highlighting the importance of choosing an evaluation metric based on the nature of the downstream task to be executed. Below, is depicted a series of regrasps generated by our CVAE model and executed in a real-world setting with the iCub robot.

Conclusion

In conclusion, we argue that the evaluation metric used to compare different synergy models should be chosen based on the downstream task that we want to execute. To this end, we have introduced the smoothness of the latent space as an evaluation metric and empirically shown its impact on an in-hand regrasping task. We also proposed the CVAE model as an alternative model for synergy extraction and showed that it can generate grasp postures based on high-level grasp properties. In future work, it would be nice to explore more intelligent methods for generating trajectories in the latent space. For instance, by leveraging the smoothness of the neighborhood within the latent space, or using metrics proposed for other generative models such as the curvature of the latent space.
